mbeat 14 In 1 USB4 Docking Station With 8K Video 40Gbps Data MB-U4DOCK-01

mbeat 14 In 1 USB4 Docking Station With 8K Video 40Gbps Data MB-U4DOCK-01

Premiere 14 port all in one USB4 docking station with up to 40Gbps bandwidth. Connect dual UHD displays, up to 7 USB devices, Gigabit LAN, SD/MicroSD 3.0 cards, hi-res audio with 100W PD pass through.

8K HD video performance

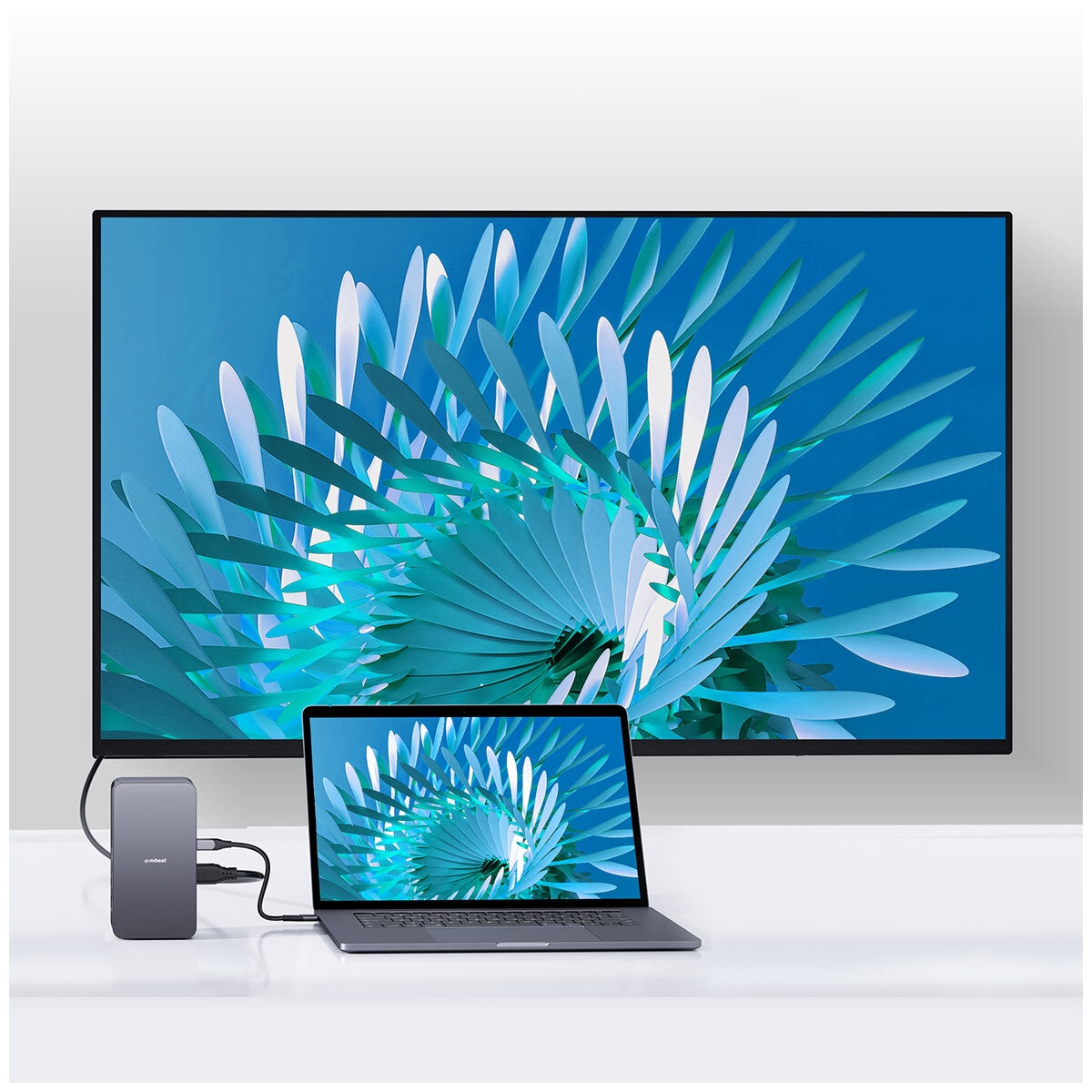

Built in HDMI 2.1 and DisplayPort 1.4, achieve crystal clear 8K resolution with compatible devices. Easily achieve 4K dual screen; Window supports MST or SST Mode 4K@60Hz; MacOS supports SST Mode 4K@60Hz. USB-C host must support DisplayPort 1.4.

High speed data and charge

Massive 7 port USB expansion with transfer rates up to 10Gbps (USB3.2/Type-C), supports BC1.2 fast charging up to 7.5W and legacy USB2.0 ports for keyboard, mice and other peripherals.

Extensively functional

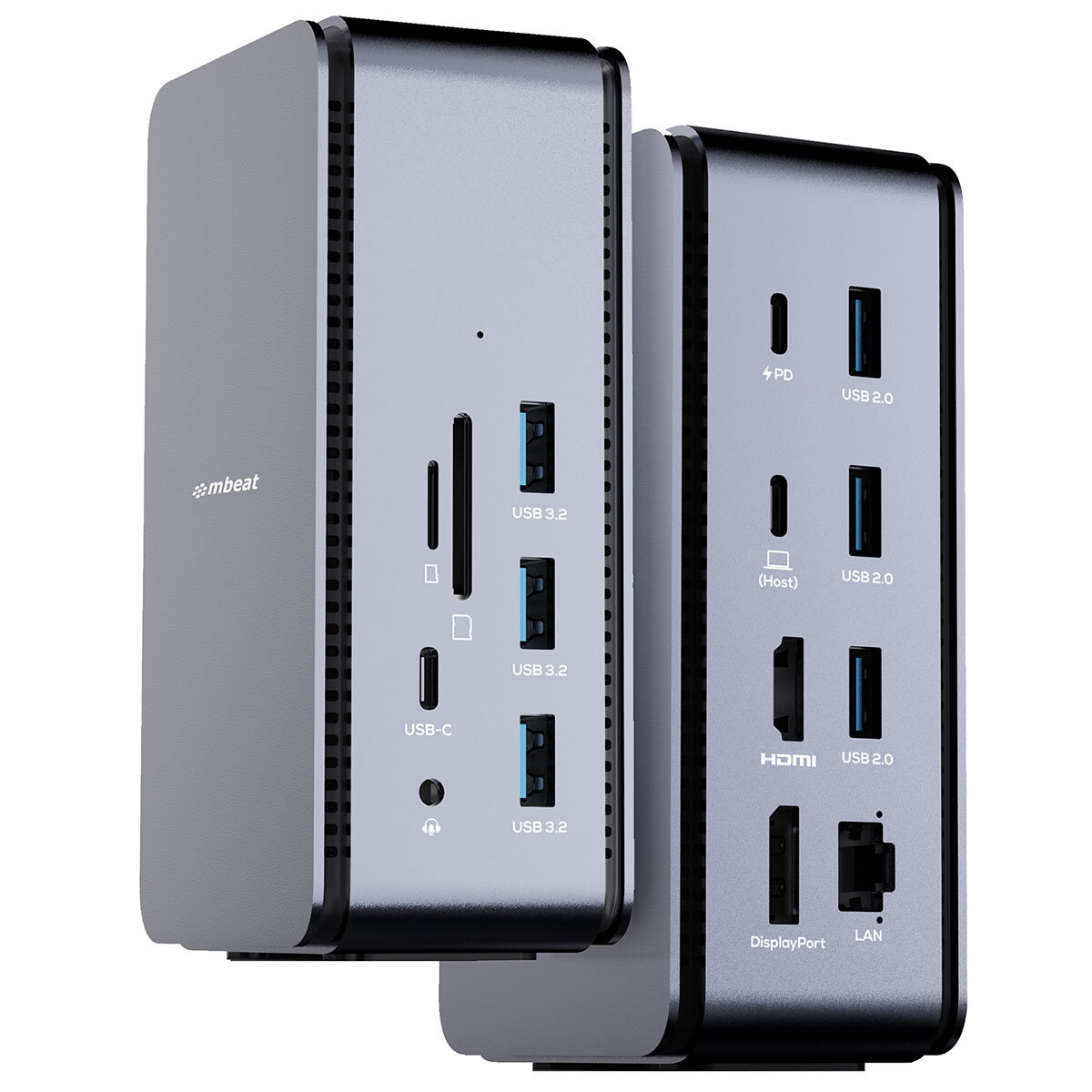

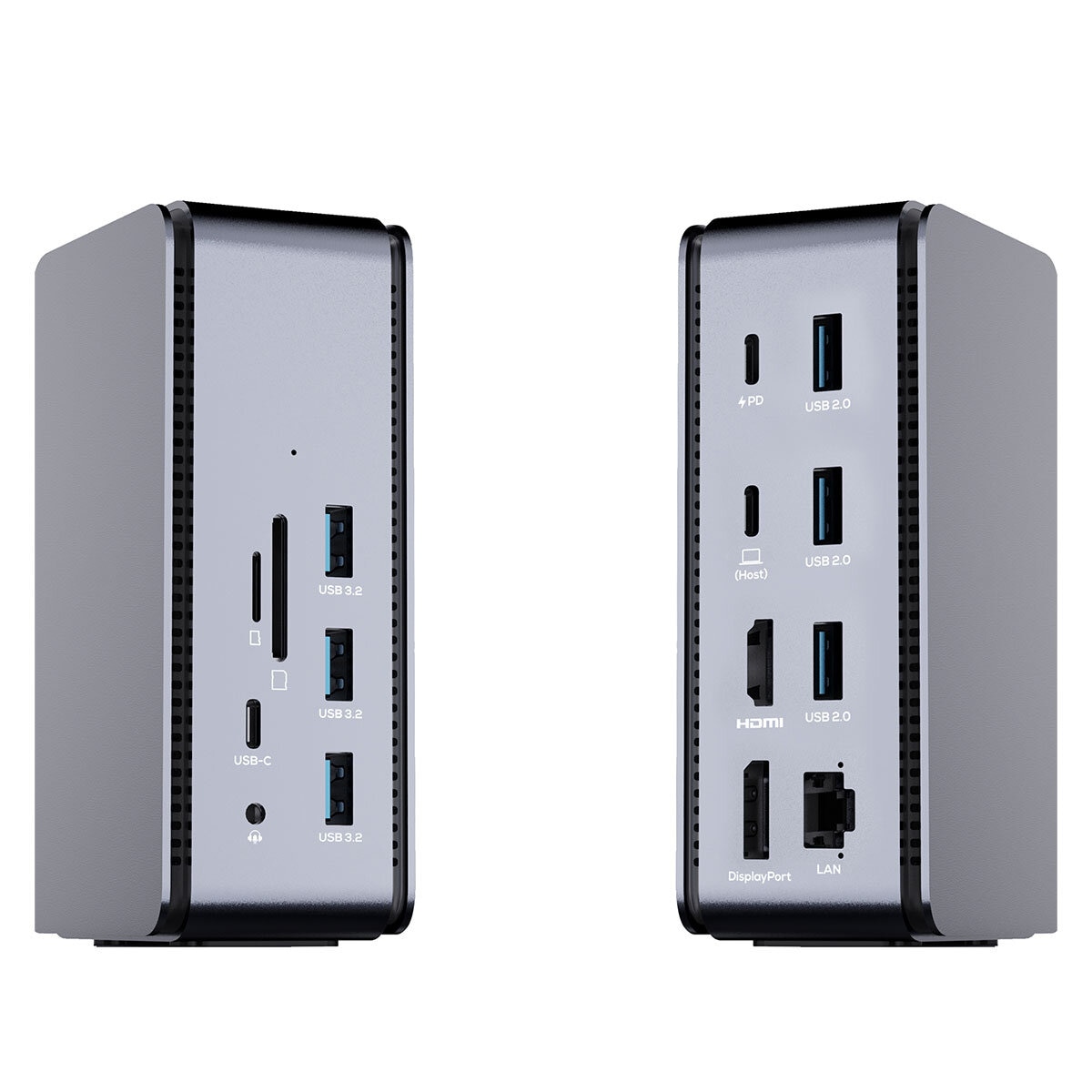

Featuring dual display via HDMI 2.1 and DP1.4, 100W PD pass through, RJ45 1000Mbps, SD/MicroSD reader, 3 x USB3.2 with BC1.2 fast charge, 3 x USB2.0, 1 x Type-C and hi-res 3.5 AUX.


This product features:

Upstream port:


• USB4 (Type-C form): 40Gbps x 1

Downstream port:


• USB Type-C 3.2: 1 x 10Gbps
• USB 3.2 Port: 3 x 10Gbps, supports BC1.2 charing up to 7.5W
• USB Type-C PD: 1 x 100W pass through
• USB 2.0 Port: 3 c 480Mbps
• HDMI 2.1: 1 x 8K@30Hz
• Display Port 1.4: 1 x 8K@30Hz
• Display Configuration: Window supports MST or SST Mode 4K@60Hz; Mac OS supports SST Mode 4K@60Hz
• RJ45 Port: 1 x 10/100/1000Mbps
• SD Card Reader: 1 x SD 3.0, compatible with SDXC, SDHC and SD
• MicroSD Card Reader: 1 x MicroSD 3.0, compatible with MicroSDXC, MicroSDHC and MicroSD
• Audio: 1 x 3.5mm Aux, SPDIF-OUT supports 16/20/24-bit format and 44.1/48/88.2/96kHz sample rate
• USB 4.0 cable: 1 x 80 cm
