Spectra Building Wire Flat TPS 2.5mm 2 Core And Earth White Sheath AU/NZ Standard

Spectra Building Wire Flat TPS 2.5mm 2 Core And Earth White Sheath AU/NZ Standard

This high quality 2.5mm twin and earth (2 core and earth) TPS cable is the industry standard for power circuit wiring across Australia and New Zealand. Designed for durability and ease of installation, it features a high performance easy tear sheath that saves time on site while ensuring full compliance with safety regulations.


The product features:

• Dual layer protection: V-90 PVC insulation with a tough, easy strip 3V-90 white outer sheath
• Full size earth: features a 2.5mm² earth wire (matching the active and neutral), providing superior grounding for high safety applications
• High voltage rating: rated at 450/750V, making it suitable for both domestic and light industrial electrical installations
• Certified safety: fully compliant with AS/NZS 5000.2 and AU/NZ 1125 (annealed copper conductors)
• Installer friendly: flat profile for easy pulling through wall cavities and timber framing
• Conductor: plain annealed copper (7/0.67mm strands)

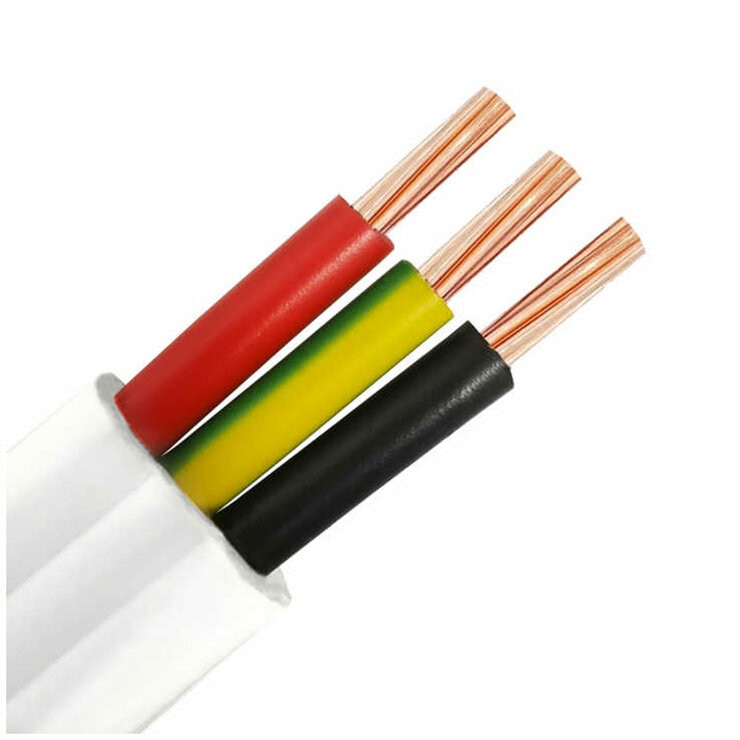

• Cores: 2 core + earth (red, black, green/yellow)
• Voltage rating: 450/750V
• Max temperature: 90°C (V-90 insulation)
• Sheath colour: white
• Standards: AS/NZS 5000.2, AS/NZS 1125

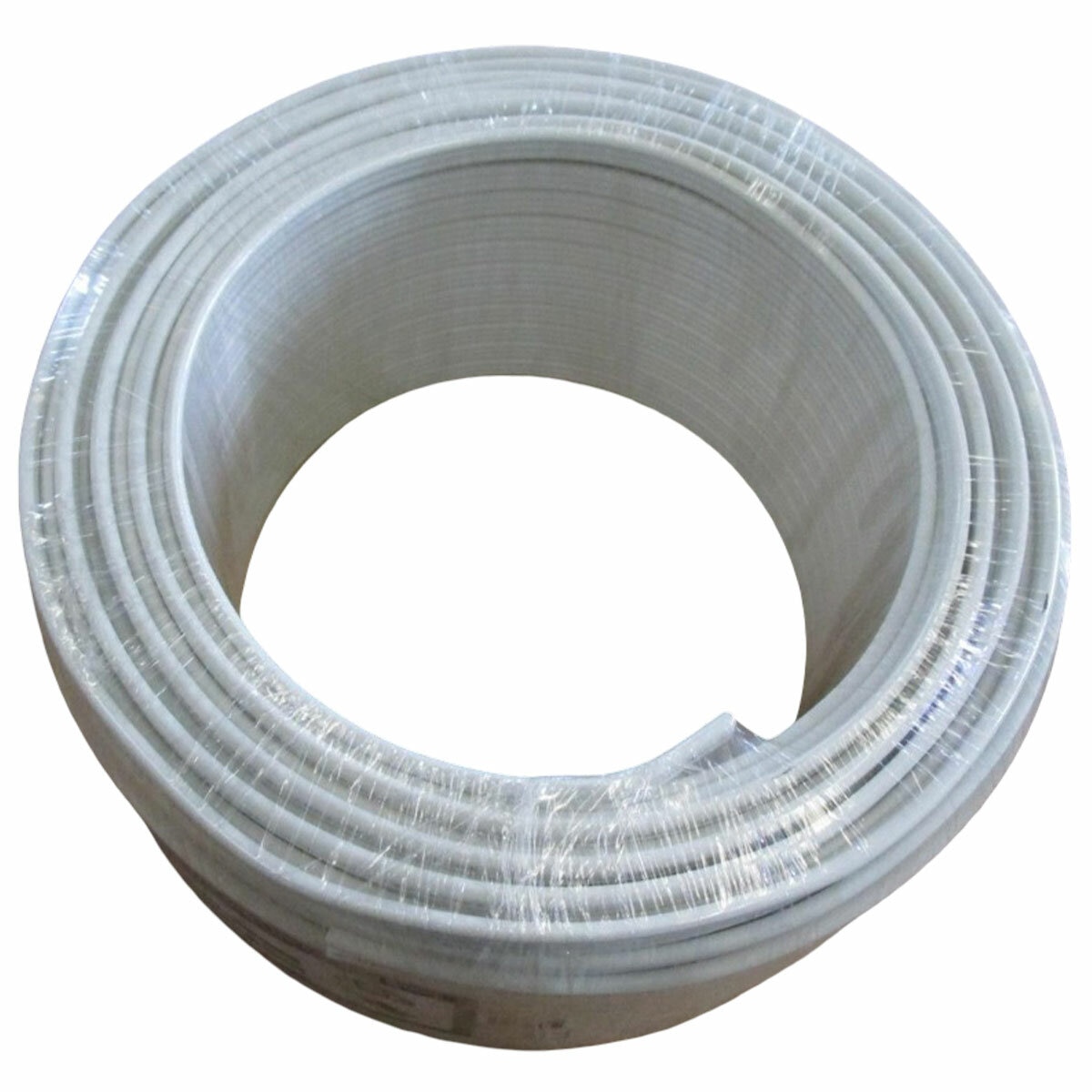

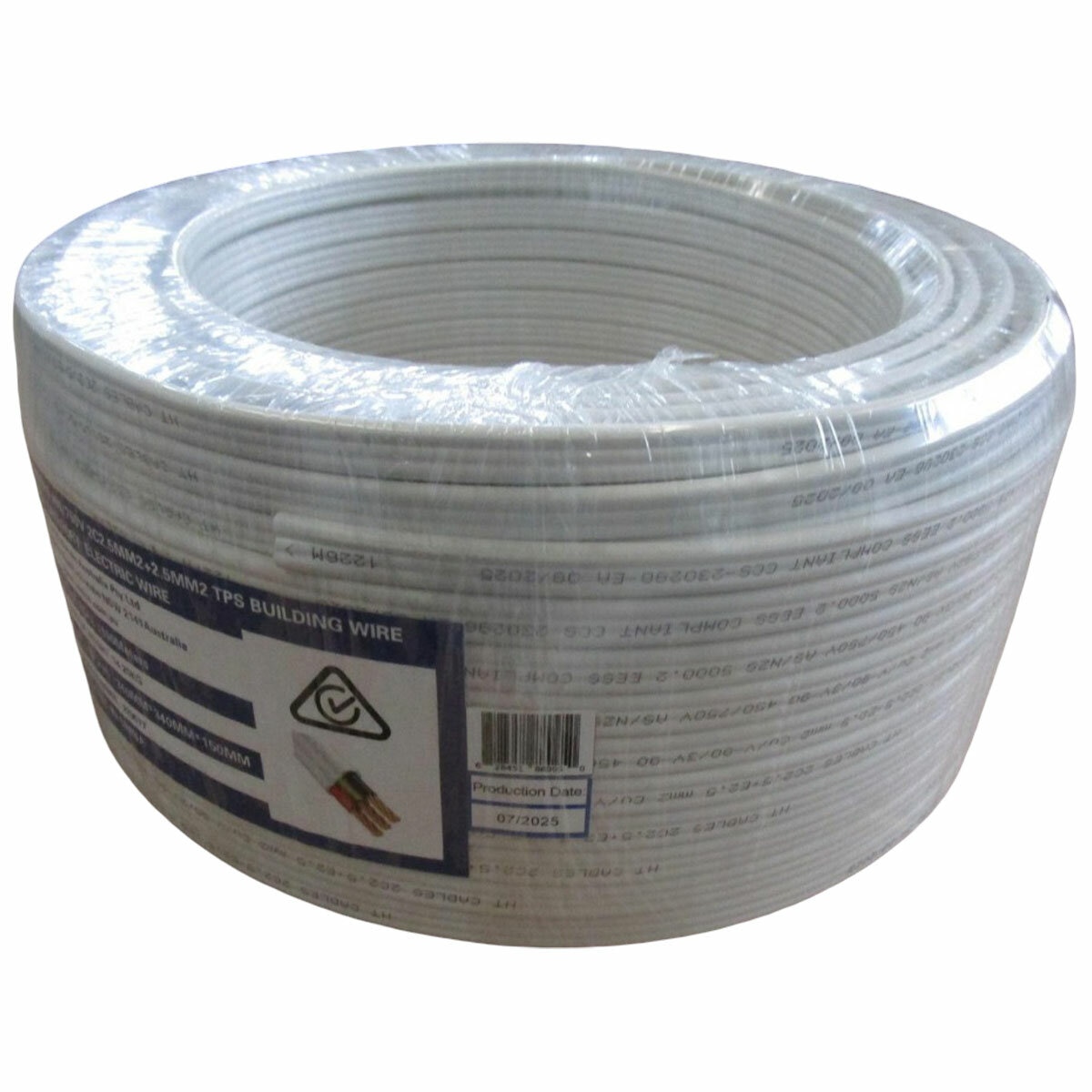

• 100 metres roll
• Easy peel PVC jacket
